Drop-In Design – Easily retrofit into existing tanks without major modifications. Customizable Sizes – Available in rectangular, square, or cylindrical designs. Frequency Options – Standard: 25 kHz, 28 kHz, 40 kHz, 68 kHz, 80 kHz, 120 kHz, and higher. Durable Construction – Made from SS 304 / SS 316L stainless steel. High Power Density – Strong cavitation for effective cleaning of stubborn contaminants. Flexible Mounting – Side-mounted, bottom-mounted, or multi-side arrangements. Modular Expansion – Add more bricks to increase cleaning coverage. Easy Maintenance – Replaceable generator and transducer assemblies. Compatible with Solvent & Aqueous Solutions – Works with a variety of cleaning chemistries.

Retrofitting Capability: Can be installed in any existing tank to convert it into an ultrasonic cleaning system. Uniform Cleaning: Even distribution of ultrasonic energy eliminates blind spots and ensures consistent cleaning. Cost-Effective: Eliminates the need to replace entire cleaning tanks, only immersible modules and a generator are added. Durability: Heavy-duty stainless steel and robust transducers ensure long operational life even in demanding applications. Energy Efficient: Advanced generator design optimizes power usage for effective cleaning with minimal energy consumption. Customizable: Tailored in shape, size, and power to suit specific tank dimensions and cleaning requirements. Reduced Downtime: Quick installation and plug-and-play operation minimize process interruptions. Scalable System: Additional immersible units can be integrated as cleaning demand increases.

Ultrasonic Immersible Bricks

Q: Industry Applications

Electronics Manufacturing : Cleans circuit boards, components, and other delicate parts with precision. Medical Device Manufacturing : Ensures sterility and removes contaminants from surgical and diagnostic instruments. Automotive Industry : Cleans engine parts and other components thoroughly. Aerospace Industry : Maintains the cleanliness of precision parts for optimal performance and safety. Jewelry Cleaning: Restores the shine and cleanliness of intricate jewelry pieces.

Our Immersible Ultrasonic Cleaning Bricks offer a flexible and efficient solution for integrating ultrasonic cleaning into any existing tank or system. Designed for versatility, these bricks can be easily immersed in various cleaning environments to provide thorough and precise cleaning using high-frequency sound waves. Ideal for industries that require meticulous cleanliness, our ultrasonic bricks ensure effective contaminant removal while being gentle on delicate components.

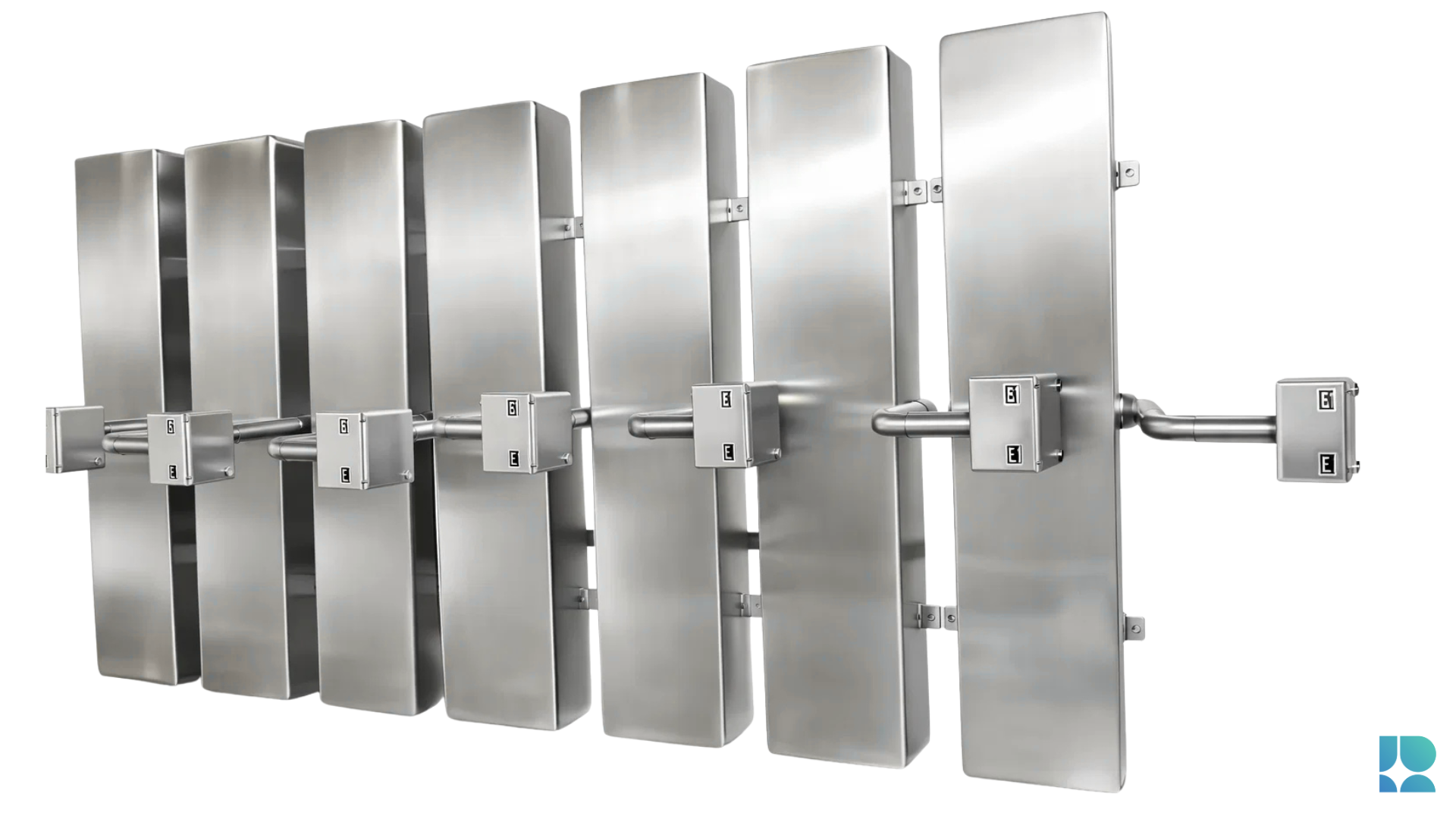

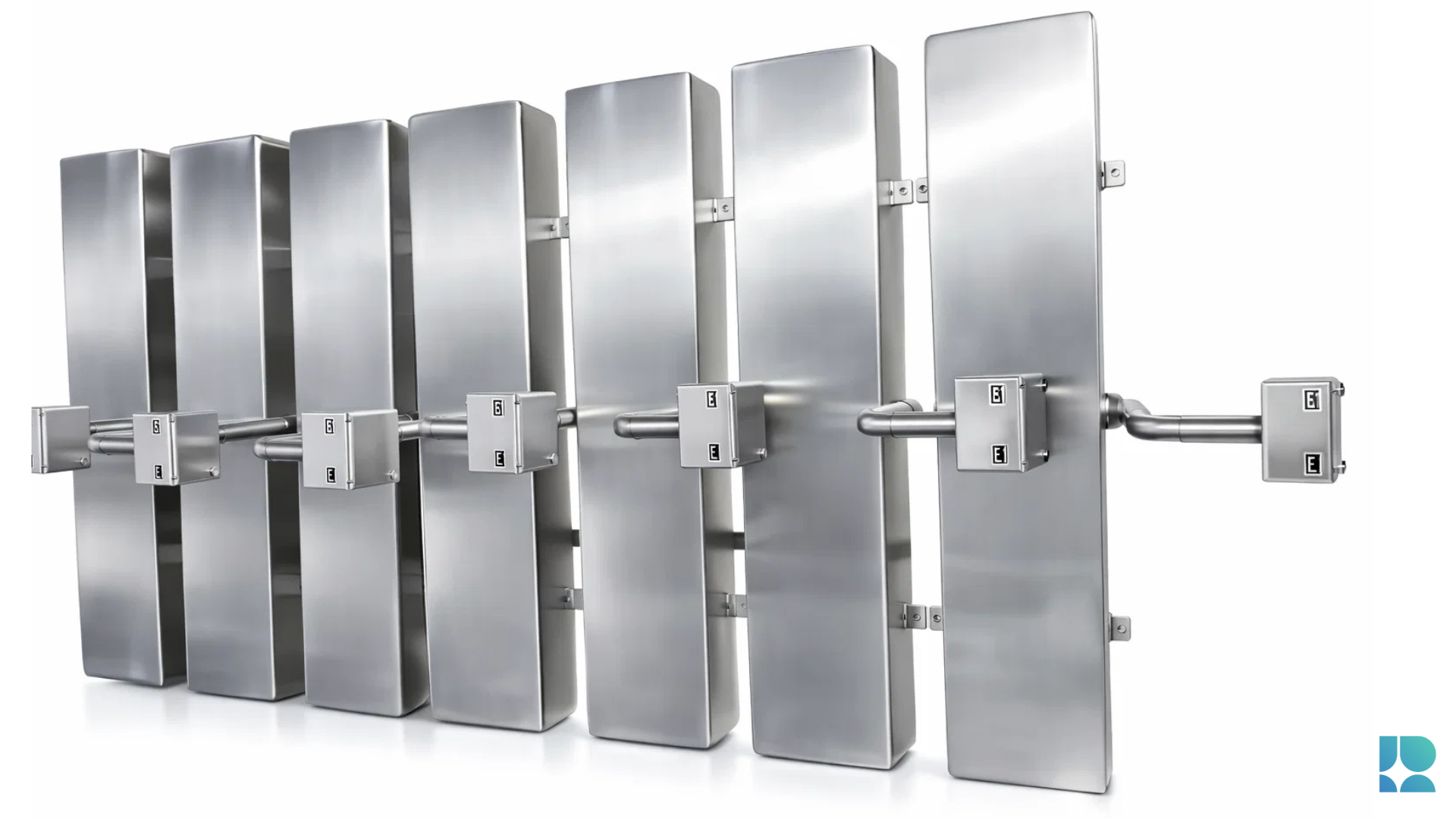

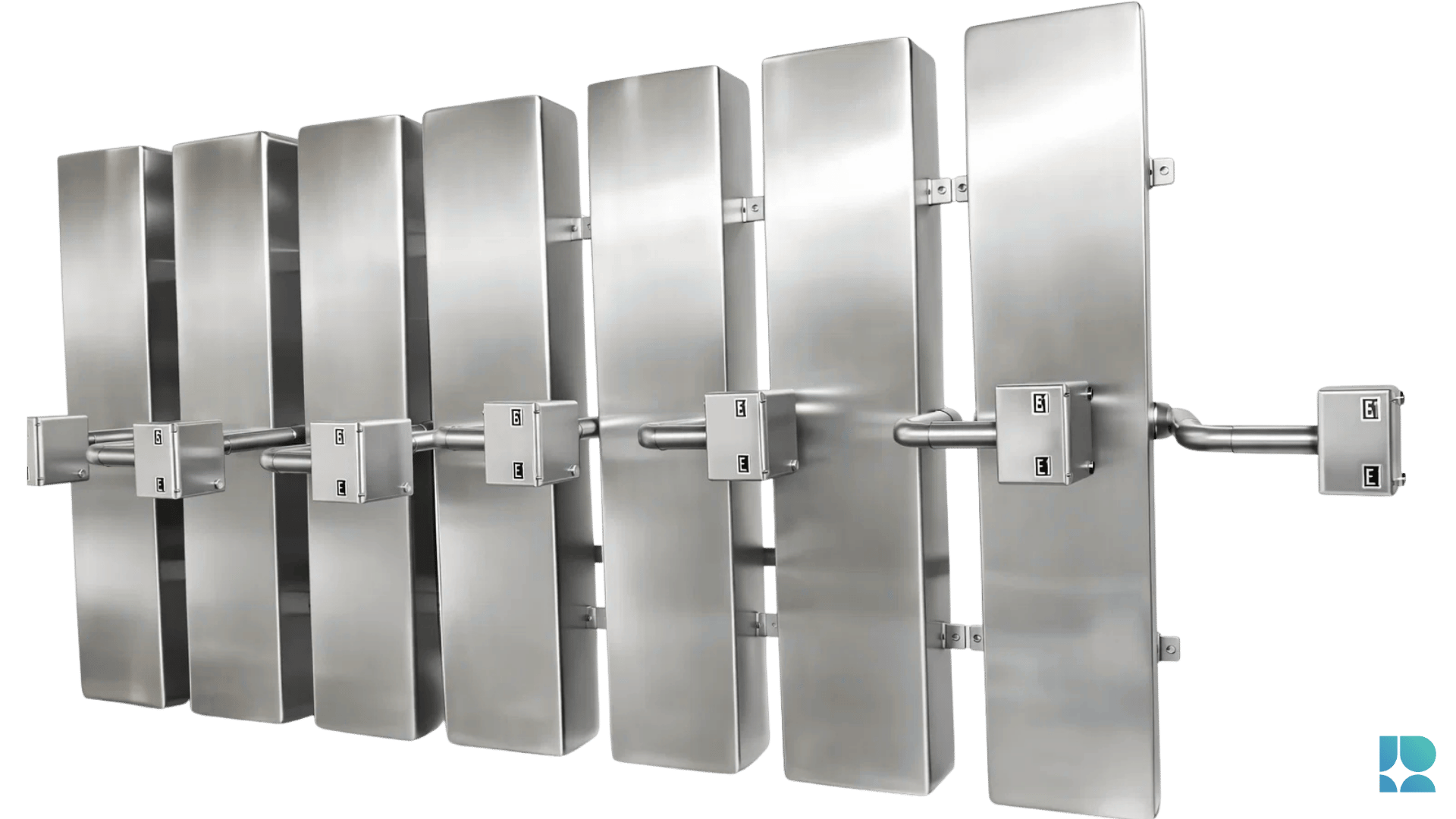

Ultrasonic Immersible Bricks (also called immersible transducers or drop-in ultrasonic units) are a cost-effective and versatile solution to upgrade existing cleaning tanks with ultrasonic technology.

Ralsonics designs and manufactures high-performance immersible ultrasonic bricks that can be customized in size, shape, power rating, and frequency to suit your application.

When to Use This?

Retrofitting in existing setups
Harsh and demanding industrial environments
Vacuum conditions
Powerful cleaning requirements
Using ultrasonic in multiple tanks

Perfect for applications where traditional cleaning methods may damage intricate parts, such as electronic components, medical instruments, and industrial machinery, Immersible Ultrasonic Cleaning Bricks deliver reliable and powerful cleaning performance.

How It Works

Immersible bricks house ultrasonic transducers that generate high-frequency sound waves inside the cleaning liquid. These waves create microscopic cavitation bubbles, which implode on component surfaces, removing oil, grease, carbon deposits, dust, polishing paste, and other contaminants.

They can be:

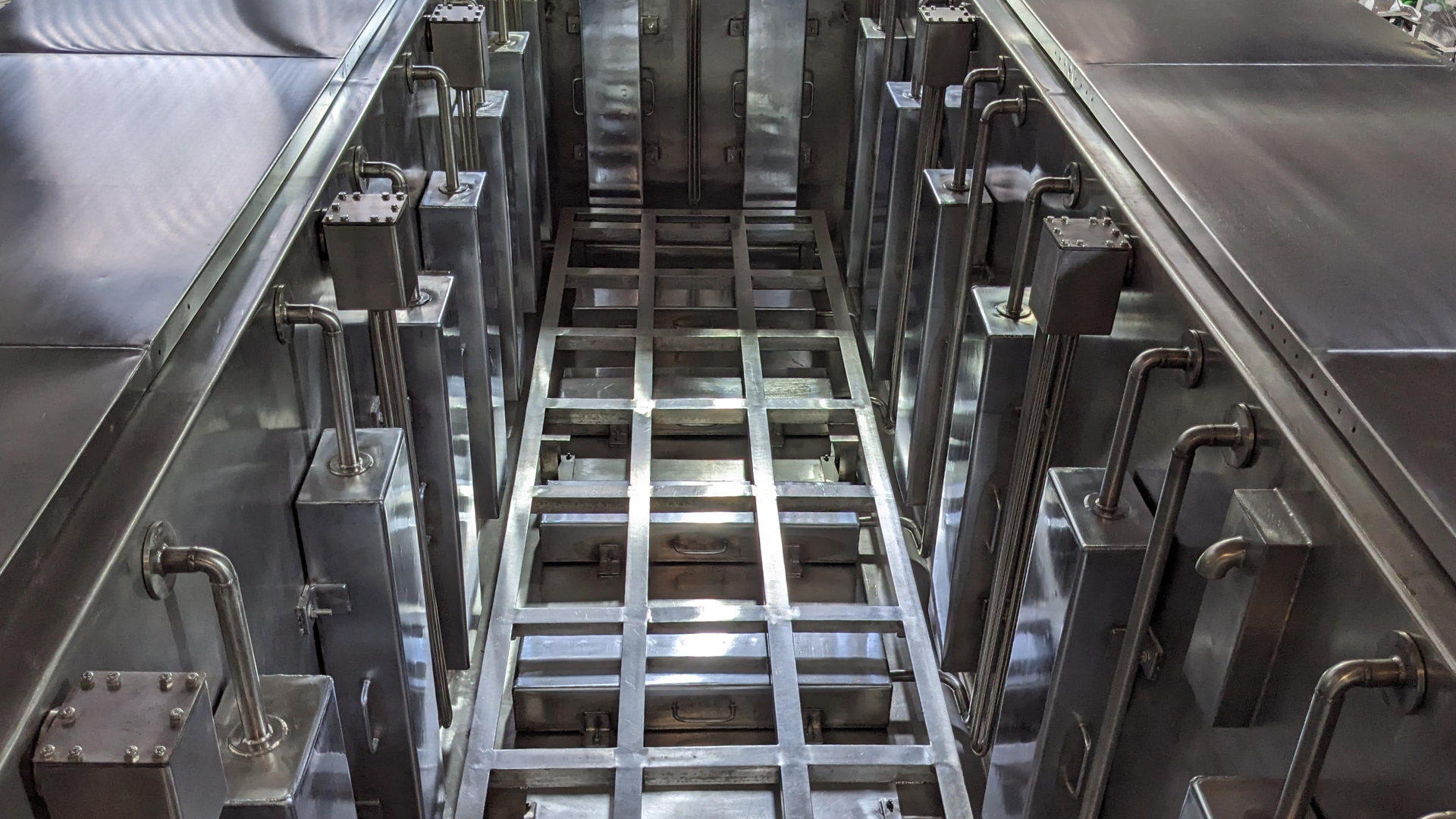

Mounted on tank walls, sides, or bottoms depending on cleaning requirements.
Configured in multiples to achieve uniform cleaning across large tanks.
Integrated with existing filtration and heating systems for improved efficiency.

Key Features

Drop-In Design – Easily retrofit into existing tanks without major modifications.
Customizable Sizes – Available in rectangular, square, or cylindrical designs.
Frequency Options – Standard: 25 kHz, 28 kHz, 40 kHz, 68 kHz, 80 kHz, 120 kHz, and higher.
Durable Construction – Made from SS 304 / SS 316L stainless steel.
High Power Density – Strong cavitation for effective cleaning of stubborn contaminants.
Flexible Mounting – Side-mounted, bottom-mounted, or multi-side arrangements.
Modular Expansion – Add more bricks to increase cleaning coverage.
Easy Maintenance – Replaceable generator and transducer assemblies.
Compatible with Solvent & Aqueous Solutions – Works with a variety of cleaning chemistries.

Advantage

Retrofitting Capability: Can be installed in any existing tank to convert it into an ultrasonic cleaning system.
Uniform Cleaning: Even distribution of ultrasonic energy eliminates blind spots and ensures consistent cleaning.
Cost-Effective: Eliminates the need to replace entire cleaning tanks, only immersible modules and a generator are added.
Durability: Heavy-duty stainless steel and robust transducers ensure long operational life even in demanding applications.
Energy Efficient: Advanced generator design optimizes power usage for effective cleaning with minimal energy consumption.
Customizable: Tailored in shape, size, and power to suit specific tank dimensions and cleaning requirements.
Reduced Downtime: Quick installation and plug-and-play operation minimize process interruptions.
Scalable System: Additional immersible units can be integrated as cleaning demand increases.

Industry Applications

Electronics Manufacturing: Cleans circuit boards, components, and other delicate parts with precision.
Medical Device Manufacturing: Ensures sterility and removes contaminants from surgical and diagnostic instruments.
Automotive Industry: Cleans engine parts and other components thoroughly.
Aerospace Industry: Maintains the cleanliness of precision parts for optimal performance and safety.
Jewelry Cleaning: Restores the shine and cleanliness of intricate jewelry pieces.

Features and Advantages

Features	Advantage
Immersible Brick-Type Ultrasonic Transducer Module	Easily installed in existing tanks without structural modification.
High-Power Ultrasonic Output	Delivers strong cavitation for deep and effective cleaning of industrial components.
Stainless Steel Housing (SS304 / SS316)	Provides corrosion resistance, durability, and long service life in harsh environments.
Wide Frequency Range (20 kHz – 40 kHz & above)	Suitable for heavy-duty, general, and precision cleaning applications.
Plug-and-Play Integration with Ultrasonic Generators	Simplifies installation and system upgrades with minimal downtime.
Uniform Ultrasonic Energy Distribution	Ensures consistent cleaning performance across the tank area.
Sealed, Waterproof Construction (IP-rated)	Enables safe continuous operation under full immersion.
Modular & Scalable Design	Multiple bricks can be combined to increase ultrasonic power or coverage area.
Flexible Mounting Options (Side/Bottom/Custom)	Adapts to different tank geometries and process requirements.
Low Maintenance & Long Service Life	No moving parts reduce wear and operational costs.
Compatible with Aqueous & Solvent Media	Works effectively with various cleaning fluids and chemicals.
Ideal for Retrofit Applications	Upgrades conventional tanks into ultrasonic cleaning systems without major investment.
