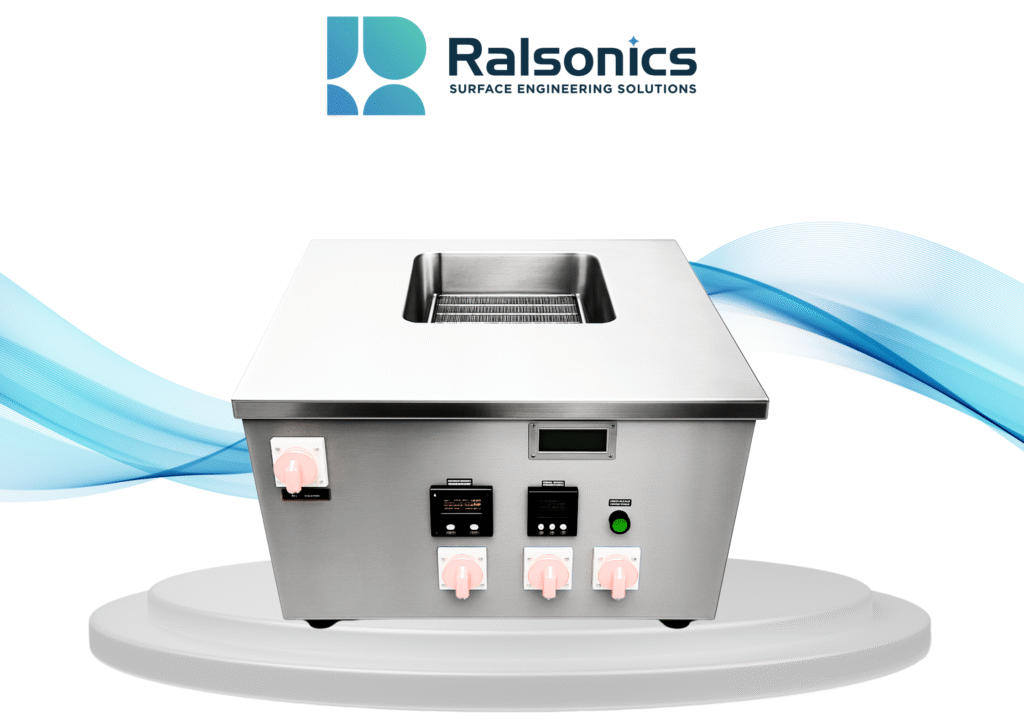

Ultrasonic Bath Sonicator

Ralsonics’ compact ultrasonic cleaners are designed for small items in small batches. They remove contamination from complicated parts which are hard to access by manual cleaning with damage. They can also be used for degassing solvents and dispersing solid samples. Being relatively inexpensive and compact, they are ideal for professional maintenance cleaning.

An Ultrasonic Bath Sonicator is a compact yet powerful cleaning and processing device that uses high-frequency ultrasonic waves to create intense cavitation in a liquid medium. This cavitation dislodges contaminants from surfaces, mixes solutions, and facilitates various laboratory processes.

Ralsonics’ Ultrasonic Bath Sonicators are engineered for precision, reliability, and versatility, making them ideal for laboratories, research institutes, medical facilities, electronics workshops, and industrial cleaning applications.

Contact our experts for more details.

How an Ultrasonic Bath Sonicator Works

Ultrasonic transducers are mounted on or immersed in the heat exchanger system.

These generate high-frequency sound waves, creating microscopic cavitation bubbles in the fluid.

The implosion of bubbles produces micro-jets and shockwaves, which:

Break down and remove existing scale, fouling, and biofilm.
Prevent new deposits from adhering to the surfaces.

The process is non-invasive, chemical-free, and continuous, ensuring minimal downtime.

Key Features

Frequency Range – Available in 25 kHz, 28 kHz, 40 kHz, 68 kHz, 80 kHz, and 120 kHz models.
Digital Controls – Easy-to-use interface for setting time, temperature, and frequency.
Temperature Regulation – Integrated heaters with adjustable temperature up to 80°C.
Uniform Cavitation – Optimized transducer placement for consistent results.
Durable Tank Construction – High-quality SS 304/316L stainless steel bath.
Compact Design – Space-saving tabletop unit suitable for labs and workshops.
Optional Features – Degassing, sweep frequency mode, and data logging.
Safety Features – Overload protection and automatic shutoff.

Advantage

Thorough Cleaning – Reaches blind holes, tiny crevices, and delicate surfaces.
Time-Saving Automates cleaning and processing, reducing manual effort.
Non-Destructive – Safe for delicate instruments and laboratory glassware.
Versatile Applications – Suitable for cleaning, mixing, degassing, and sonication.
Eco-Friendly – Reduces or eliminates the use of strong chemicals.
Cost-Effective – Multiple processes can be performed in one unit.

Industry Applications

Thorough Cleaning – Reaches blind holes, tiny crevices, and delicate surfaces.
Time-Saving – Automates cleaning and processing, reducing manual effort.
Non-Destructive – Safe for delicate instruments and laboratory glassware.
Versatile Applications – Suitable for cleaning, mixing, degassing, and sonication.
Eco-Friendly – Reduces or eliminates the use of strong chemicals.
Cost-Effective – Multiple processes can be performed in one unit.

Features and Advantages

Features	Advantages
Tank-Based Ultrasonic Cleaning System	Allows simultaneous processing of multiple samples or instruments.
Uniform Ultrasonic Energy Distribution	Ensures consistent cavitation across the entire bath area.
Digital Timer & Temperature Control	Provides precise control and repeatable processing cycles.
Built-In Heating System	Enhances cleaning and sample preparation efficiency.
Stainless Steel Tank Construction (SS304)	Durable, corrosion-resistant, and easy to maintain.
User-Friendly Control Panel	Simple operation suitable for laboratory and industrial users.
Adjustable Ultrasonic Power (Model Dependent)	Allows optimization for delicate or moderately contaminated samples.
Low Noise & Vibration Operation	Comfortable for laboratory environments.
Basket & Lid Included	Prevents sample contact with tank bottom and reduces evaporation.
Multiple Frequency Options Available	Supports general cleaning, degassing, dissolution, and homogenization applications.
Compact Benchtop or Industrial Models	Available for small labs as well as larger batch processing.
Low Maintenance & Long Service Life	No moving parts; reliable performance over extended use.

Parameter	Specification
Frequency	25–120 kHz
Tank Capacity	1 L – 50 L (custom options available)
Construction Material	SS 304 / SS 316L
Ultrasonic Power	50 W – 1500 W
Heating Range	Ambient – 80°C
Timer	Digital, 1–99 minutes
Operation Modes	Continuous / Pulse / Sweep
Optional Accessories	Basket, cover, drain valve, cooling coils

FAQ

Q1. What is the difference between an ultrasonic cleaner and an ultrasonic bath sonicator?

An ultrasonic cleaner is primarily used for cleaning, while an ultrasonic bath sonicator is designed for both cleaning and laboratory applications such as mixing, dispersing, and homogenization.

Q2. Can biological samples be processed with a sonicator bath?

Yes. It can be used for cell disruption, DNA/RNA extraction, and enzyme activation in research labs.

Q3. Is temperature control important in ultrasonic baths?

Yes. Precise temperature regulation ensures consistent cleaning and prevents damage to delicate samples.

Q4. Can it be used continuously for long durations?
